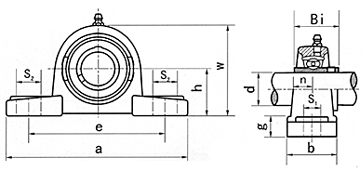

Shaft Dia.

Unit No.

Dimensions(in.)

Bolt Used in.

Bearing No.

Housing No.

Weight

mm

in.

h

a

e

b

s2

s1

g

w

bi

n

kg

Ibs.

12 15 17

1/2 5/8

UCP201-8 202-10 UCP201 　 202 　 203

1-3/16

5

3-3/4

1-1/2

3/4

1/2

15/32

2-3/8

1.2205

0.7205

3/8

UCP201-8 202-10 UCP201 　 202 　 203

P203

0.78

1.72

20

3/4

UCP204-12 UCP204

1-5/16

5

3-3/4

1-1/2

3/4

1/2

15/32

2-3/8

1.2205

0.7205

3/8

UCP204-12 UCP204

P204

0.66

1.46

25

7/8 15/16 1

UCP205-14 205-15 205-16　 UCP205

1-7/16

5-1/2

4-1/8

1-1/2

3/4

1/2

1/2

2-25/32

1.3386

0.5630

3/8

UCP205-14 205-15 205-16　 UCP205

P205

0.86

1.90

30

1-1/16 1-1/8 1-3/16 1-1/4 1-1/4

UCP206 206-17 206-18 206-19 206-20 UCP206

1-11/16

6-1/2

4-3/4

1-7/8

13/16

21/32

19/32

3-5/16

1.5000

0.6260

1/2

UCP206 206-17 206-18 206-19 206-20 UCP206

P206

1.41

3.11

35

1-5/16 1-3/8 1-7/16 1-1/2

UCP207-20 207-21 207-22 207-23 UCP207

1-7/8

6-9/16

5

1-7/8

13/16

21/32

5/8

3-21/32

1.6890

0.6890

1/2

UCP207-20 207-21 207-22 207-23 UCP207

P207

1.66

3.66

40

1-9/16 1-5/8

UCP208-24 208-25 UCP208

1-15/16

7-1/4

5-13/32

2-1/8

13/16

21/32

21/32

3-27/32

1.9370

0.7460

1/2

UCP208-24 208-25 UCP208

P208

2.12

4.67

45

1-11/16 1-3/4 1-7/8

UCP209-26 209-27 209-28 UCP209

2-1/8

7-15/32

5-3/4

2-1/8

13/16

21/32

21/32

4-3/16

1.9370

0.7480

1/2

UCP209-26 209-27 209-28 UCP209

P209

2.40

5.29

50

1-15/16 2

UCP210-30 210-31 UCP210

2-1/4

8-1/8

6-1/4

2-3/8

7/8

25/32

3/4

4-7/16

2.0315

0.7480

5/8

UCP210-30 210-31 UCP210

P210

2.94

6.48

55

2-1/8 2-3/16 2-1/4

UCP211-32 211-34 211-35 UCP211

2-1/2

8-5/8

6-23/32

2-3/8

7/8

25/32

3/4

4-29/32

2.1890

0.8740

5/8

UCP211-32 211-34 211-35 UCP211

P211

3.66

8.07

60

2-3/8 2-7/16 2-1/2

UCP212-36 212-38 212-39 UCP212

2-3/4

9-1/2

7-1/4

2-3/4

1

25/32

7/8

5-7/16

2.5630

1.0000

5/8

UCP212-36 212-38 212-39 UCP212

P212

5.15

11.3

65

2-3/4

UCP213-40 UCP213

3

10-7/16

8

2-3/4

1-3/16

1

1

5-29/32

2.5630

1.0000

3/4

UCP213-40 UCP213

P213

6.10

13.4

70

2-15/16

UCP214-44 UCP214

3-1/8

10-15/32

8-9/32

2-27/32

1-3/16

1

1-3/32

6-5/32

2.9370

1.1890

3/4

UCP214-44 UCP214

P214

6.90

15.2

75

3 3

UCP215-47 215-48 UCP215

3-1/4

10-13/16

8-17/32

2-29/32

1-3/16

1

1-3/32

6-3/8

3.0630

1.3110

3/4

UCP215-47 215-48 UCP215

P215

7.85

17.3









Shaft Dia.

Unit No.

Dimensions(in.)

Bolt Used in.

Bearing No.

Housing No.

Weight

mm

in.

h

a

e

b

s2

s1

g

w

bi

n

kg

Ibs.

12 15 17 20

1/2 5/8 3/4

UCAK201-8 202-10 204-12 UCAK201 202 203 204

1-1/4

5-1/2

3-7/8

1-5/8

9/16

7/16

9/16

2-1/2

1.2205

0.7205

3/8

UC201-8 202-10 204-12 UC201 202 203 204

AK204

0.85

1.87

25

7/8 15/16 1

UCAK205-14 205-15 205-16　 UCAK205

1-5/16

5-1/2

4-1/8

1-3/4

9/16

7/16

5/8

2-11/16

1.3386

0.5630

3/8

UC205-14 205-15 205-16　 UC205

AK205

1.00

2.20

30

1-1/16 1-1/8 1-3/16 1-1/4

UCAK206 206-17 206-18 206-19 206-20 UCAK206

1-9/16

6-5/16

4-3/4

1-7/8

3/4

9/16

11/16

3-5/32

1.5000

0.6260

1/2

UC206 206-17 206-18 206-19 206-20 UC206

AK206

1.40

3.09

35

1-5/16 1-3/8 1-7/16

UCAK207-20 207-21 207-22 207-23 UCAK207

1-13/16

6-9/16

5

1-7/8

3/4

9/16

3/4

3-5/8

1.6890

0.6890

1/2

UC207-20 207-21 207-22 207-23 UC207

AK207

1.77

3.90

40

1-1/2 1-9/16

UCAK208-24 208-25 UCAK208

1-15/16

7-1/8

5-1/2

2-1/8

3/4

9/16

3/4

3-15/16

1.9370

0.7480

1/2

UC208-24 208-25 UC208

AK208

2.11

4.65

45

1-5/8 1-11/16 1-3/4

UCAK209-26 209-27 209-28 UCAK209

2-1/16

7-1/2

5-3/4

2-1/8

3/4

9/16

13/16

4-13/16

1.9370

0.7480

1/2

UC209-26 209-27 209-28 UC209

AK209

2.47

5.47

50

1-7/8 1-15/16

UCAK210-30 210-31 UCAK210

2-3/16

8

6-1/4

2-1/4

3/4

9/16

7/8

4-7/16

2.0315

0.7480

1/2

UC210-30 210-31 UC210

AK210

2.43

6.46

55

2 2-1/8 2-3/16

UCAK211-32 211-34 211-35 UCAK211

2-7/16

9-1/8

7-1/8

2-3/8

15/16

11/16

1

4-29/32

2.1890

0.8740

5/8

UC211-32 211-34 211-35 UC211

AK211

3.97

8.75

60

2-1/4 2-3/8 2-7/16

UCAK212-36 212-38 212-39 UCAK212

2-11/16

9-1/2

7-1/2

2-1/2

15/16

11/16

1-1/8

5-3/8

2.5630

1.0000

5/8

UC212-36 212-38 212-39 UC212

AK212

5.01

11.0

75

2-15/16 3

UCAK215-47 215-48 UCAK215

3-5/16

12

9-1/2

3-1/4

1-1/4

7/8

1-1/2

6-17/32

3.0630

1.3110

3/4

UC215-47 215-48 UC215

AK215

8.50

18.7



Note:Grease fittings can be positioned on pillow blocks at 90°upon request

obt ball bearing, pillow block ball bearing, insert ball bearing.

Shandong Obetter Bearing Compnay Insert Ball Bearings also known as pillow block ball bearing,is a mounted plain or roller bearing used to provide support for a rotating shaft with the mounting surface on a parallel line with the axis of the shaft. are designed in almost the same way as deep groove ball bearings, except that the outer ring is spherical. Their design allows the bearings to be easily mounted in a housing block and be self-aligning.

Bearing housings are usually made of grey cast iron. However various different grades of metals can be used to manufacture the same.Boundary dimensions of all plummer blocks follow ISO 113 specification.

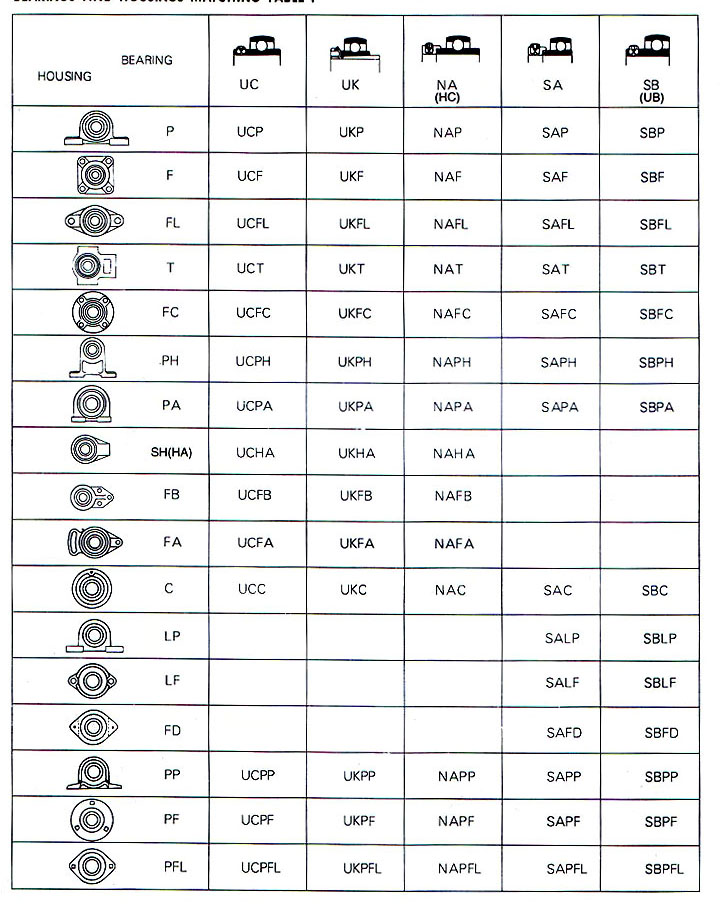

we can supply the specifications:

1)UCP200 series  UCP300 series
2)UCF200 series  UCF300 series
3)UCFL200 series  UCFL300 series
4)UCFA200 series UCFB200 sreies
5)UCFC200 series UCFK200 Series
6)UCPH200 series  UCPA200 series
7)UCT200 series   UCT300 series
8)UCPA200 series
9)UCFB200 series
10) SALF200 SBLF200 Series
11) SBFW200 SBFD200 Series
etc.

OBT Factory can produce non-standard bearing and machine parts as our customers request. we always follows the principles of "Good Faith, Equality, Cooperation and Win-Win" to cooperate with our customers.
