Bearing NO. |
Bore d |
Outer Diameter D |
Width W |
Radius r |
Basic Load Rating Ibs. |
Weight Ibs. | |||||
|
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
Dynamic C |
Static Co | ||
|
6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018 6019 6020 6021 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040 |
10 12 15 17 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 170 180 190 200 |
.3937 .4724 .5906 .6693 .7874 .9843 1.1811 1.3780 1.5748 1.7717 1.9685 2.1654 2.3622 2.5591 2.7559 2.9528 3.1496 3.3465 3.5433 3.7402 3.9370 4.1339 4.3307 4.7244 5.1181 5.5118 5.9055 6.2992 6.6929 7.0866 7.4803 7.8740 |
26 28 32 35 42 47 55 62 68 75 80 90 95 100 110 115 125 130 140 145 150 160 170 180 200 210 225 240 260 280 290 310 |
1.0236 1.1024 1.2598 1.3780 1.6535 1.8504 2.1654 2.4409 2.6772 2.9528 3.1496 3.5433 3.7402 3.9370 4.3307 4.5276 4.9213 5.1181 5.5118 5.7087 5.9055 6.2992 6.6929 7.2866 7.8740 8.2677 8.8584 9.4488 10.2362 11.0236 11.4173 12.2047 |
8 8 9 10 12 12 13 14 15 16 16 18 18 18 20 20 22 22 24 24 24 26 28 28 33 33 35 38 42 46 46 51 |
.3150 .3150 .3543 .3937 .4724 .4724 .5118 .5512 .5906 .6299 .6299 .7087 .7087 .7087 .7874 .7874 .8661 .8661 .9449 .9449 .9449 1.0236 1.1024 1.1024 1.2992 1.2992 1.3780 1.4961 1.6535 1.8110 1.8110 2.0039 |
0.5 0.5 0.5 0.5 1.0 1.0 1.5 1.5 1.5 1.5 1.5 1.5 2.0 2.0 2.0 2.0 2.0 2.0 2.5 2.5 2.5 3.0 3.0 3.0 3.0 3.0 3.5 3.5 3.5 3.5 3.5 3.5 |
.020 .020 .020 .020 .020 .039 .039 .059 .059 .059 .059 .059 .079 .079 .079 .079 .079 .079 .098 .098 .098 .118 .118 .118 .118 .118 .138 .138 .138 .138 .138 .138 |
1030 1150 1260 1530 2110 2260 2970 3600 3750 4700 4900 6350 6600 6850 8550 8900 10700 11100 13100 13600 13500 16300 88400 19100 23900 24700 28300 32000 38000 42500 44000 49000 |
440 540 635 755 1140 1320 1860 2310 2590 3400 3750 4850 5200 5650 6950 7550 8950 9700 11200 12100 12200 14800 16400 17800 22700 24400 28300 32500 38500 44500 48500 54500 |
.042 .049 .066 .086 .152 .176 .256 .342 .423 .540 .575 .849 .915 .959 1.33 1.41 1.87 1.96 2.56 2.67 2.76 3.51 4.32 4.56 6.97 7.39 8.99 11.10 17.50 22.70 23.80 30.60 |
|
Bearing NO. |
Bore d |
Outer Diameter D |
Width W |
Radius r |
Basic Load Rating Ibs. |
Weight Ibs. | |||||
|
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
Dynamic C |
Static Co | ||
|
6200 6201 6201-1/2 6201/13 6202 6202-1/2 6202-5/8 6202-16 6203 6203-1/2 6203-15 6203-5/8 6203-16 6203-3/4 6204 6204-3/4 6204-7/8 6205 6205-1 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217 6218 6219 6220 6221 6222 6224 6226 6228 6230 6232 6234 6236 6238 6240 |
10 12 12.7 13 15 12.7 15.875 16 17 12.7 15 15.875 16 19.05 20 19.05 22.225 25 25.4 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 170 180 190 200 |
.3937 .4724 .5000 .5118 .5906 .5000 .6250 .6299 .6693 .5000 .5906 .6250 .6299 .7500 .7874 .7500 .8750 .9843 1.0000 1.1811 1.3780 1.5748 1.7717 1.9685 2.1654 2.3622 2.5591 2.7559 2.9528 3.1496 3.3465 3.5433 3.7422 3.9370 4.1339 4.3307 4.7244 5.1181 5.5118 5.9055 6.2992 6.6929 7.0866 7.4803 7.8740 |
30 32 32 32 35 35 35 35 40 40 40 40 40 40 47 47 47 52 52 62 72 80 85 90 100 110 120 125 130 140 150 160 170 180 190 200 215 230 250 270 290 310 320 340 360 |
1.1811 1.2598 1.2598 1.2598 1.3780 1.3780 1.3780 1.3780 1.5748 1.5748 1.5748 1.5748 1.5748 1.5748 1.8504 1.8504 1.8504 2.0472 2.0472 2.4409 2.8346 3.1496 3.3465 3.5433 3.9370 4.3307 4.7244 4.9213 5.1181 5.5118 5.9055 6.2992 6.6929 7.0866 7.48.3 7.8740 8.4646 9.0551 9.8425 10.6299 11.4173 12.2047 12.5984 13.3858 14.1732 |
9 10 10 10 11 11 11 11 12 12 12 12 12 12 14 14 14 15 15 16 17 18 19 20 21 22 23 24 25 26 28 30 32 34 36 38 40 40 42 45 48 52 52 55 58 |
.3543 .3937 .3937 .3937 .4331 .4331 .4331 .4331 .4724 .4724 .4724 .4724 .4724 .4724 .5512 .5512 .5512 .5906 .5906 .6299 .6693 .7087 .7480 .7874 .8268 .8661 .9055 .9449 .9843 1.0236 1.1024 1.1811 1.2598 1.3386 1.4173 1.4961 1.5748 1.5748 1.6535 1.7717 1.8898 2.0472 2.0472 2.1654 2.2835 |
1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.5 1.5 1.5 1.5 1.5 1.5 2.0 2.0 2.0 2.0 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0 3.5 3.5 3.5 3.5 3.5 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0 |
.039 .039 .039 .039 .039 .039 .039 .039 .039 .039 .039 .039 .039 .039 .059 .059 .059 .059 .059 .059 .079 .079 .079 .079 .098 .098 .098 .098 .098 .118 .118 .118 .138 .138 .138 .138 .138 .138 .157 .157 .157 .197 .197 .197 .197 |
1150 1370 1370 1370 1740 1740 1740 1740 2160 2160 2160 2160 2160 2160 2890 2890 2890 3150 3150 4400 5750 6550 7350 7900 9750 11800 12900 14000 14900 16300 18700 21600 24500 27500 29900 32500 35000 37500 37500 39500 41500 47500 51000 57500 60500 |
540 615 615 615 805 805 805 805 1030 1030 1030 1030 1030 1030 1500 1500 1500 1770 1770 2540 3450 4000 4600 5200 6500 8150 9000 9900 11100 11900 14300 16100 18400 20900 23500 26300 29500 33000 33500 37500 42000 50000 54000 63500 70000 |
.071 .082 .082 .082 .099 .110 .090 .090 .143 .154 .148 .150 .150 .145 .234 .236 .230 .282 .280 .635 .807 .897 1.02 1.34 1.37 2.18 2.36 2.60 3.09 3.95 4.74 5.78 6.90 8.14 9.61 11.4 12.8 16.5 20.7 31.5 38.6 40.3 50.7 62.2 |
|
Bearing NO. |
Bore d |
Outer Diameter D |
Width W |
Radius r |
Basic Losd Rating Ibs |
Weight Ibs. | |||||
|
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
Dynamic C |
Static Co | ||
|
6300 6301 6302 6303 6304 6305 6306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322 6324 6326 6328 6330 6332 6334 6336 6338 6340 |
10 12 15 17 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 170 180 190 200 |
.3937 .4724 .5902 .6693 .7874 .9843 1.1811 1.3780 1.5748 1.7717 1.9685 2.1654 2.3622 2.5591 2.7559 2.9526 3.1496 3.3465 3.5433 3.7402 3.9370 4.1339 4.3307 4.7244 5.1181 5.5118 5.9055 6.2992 6.6929 7.0866 7.4803 7.8740 |
35 37 42 47 52 62 72 80 90 100 110 120 130 140 150 160 170 180 190 200 215 225 240 260 280 300 320 340 360 380 400 420 |
1.3780 1.4567 1.6535 1.8504 2.0472 2.4409 2.8346 3.1496 3.5433 3.9370 4.3307 4.7244 5.1181 5.5118 5.9055 6.2992 6.6929 7.0866 7.4803 7.8740 8.4646 8.8583 9.4488 10.2362 11.0236 11.8110 12.5984 13.3858 14.1732 14.9606 15.7480 16.5354 |
11 12 13 14 15 17 19 201 23 25 27 29 31 33 35 37 39 41 43 45 47 49 50 55 58 62 65 68 72 75 78 80 |
.4331 .4724 .5118 .5512 .5906 .6693 .7480 .8268 .9055 .9843 1.0630 1.1417 1.2205 1.2992 1.3780 1.4567 1.5354 1.6142 1.6929 1.7717 1.8504 1.9291 1.9685 2.1654 2.2835 2.4409 2.5591 2.6772 2.8346 2.9528 3.0709 3.1496 |
1.0 1.5 1.5 1.5 2.0 2.0 2.0 2.5 2.5 2.5 3.0 3.0 3.5 3.5 3.5 3.5 3.5 4.0 4.0 4.0 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0 5.0 5.0 6.0 6.0 |
.039 .059 .059 .059 .079 .079 .079 .098 .098 .098 .118 .118 .138 .138 .138 .138 .138 .157 .157 .157 .157 .157 .157 .157 .197 .197 .197 .197 .197 .197 .236 .236 |
1840 2180 2570 3050 3600 4750 6000 7500 9150 11900 13900 16100 18400 20800 23400 25500 27600 29800 32000 34500 39000 41500 40000 46500 51500 57000 61500 62500 73500 79500 79500 92000 |
785 940 1220 1470 1770 2460 3400 4300 5400 7200 8600 10100 11700 13400 15300 17400 19500 21800 24100 26600 31500 34500 40500 41500 48000 55500 63500 64500 80000 91500 93000 113000 |
.117 .132 .181 .254 .317 .511 .763 1.01 1.40 1.84 2.36 3.02 3.75 4.59 5.56 6.66 7.91 9.33 10.8 12.5 15.4 17.7 21.0 27.3 33.3 40.8 57.8 63.9 76.1 93.5 108.0 122.0 |
|
Bearing NO. |
Bore d |
Outer Diameter D |
Width W |
Radius r |
Basic Losd Rating Ibs |
Weight Ibs. | |||||
|
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
Dynamic C |
Static Co | ||
|
6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 |
17 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 |
.6693 .7874 .9843 1.1811 1.3780 1.5748 1.7717 1.9685 2.1654 2.3622 2.5591 2.7559 2.9528 3.1496 3.3465 3.5433 |
62 72 80 90 100 110 120 130 140 150 160 180 190 200 210 225 |
2.4409 2.8346 3.1496 3.5433 3.9370 4.3307 4.7244 5.1181 5.5118 5.9055 6.2992 7.0866 7.4803 7.8740 8.2677 8.8583 |
17 19 21 23 25 27 29 31 33 35 37 42 45 48 52 54 |
.6693 .7480 .8268 .9055 .9843 1.0630 1.1417 1.2205 1.2992 1.3780 1.4567 1.6535 1.7717 1.8898 2.0472 2.1260 |
1.0 1.0 1.5 1.5 1.5 2.0 2.0 2.0 2.0 2.0 2.0 2.5 2.5 2.5 3.0 3.0 |
.039 .039 .059 .059 .059 .079 .079 .079 .079 .079 .079 .098 .098 .098 .118 .118 |
5100 6400 4750 9750 12400 14300 17300 18700 20000 22900 24900 28800 31000 37000 37000 41500 |
2420 3150 2460 5350 7000 8200 10100 11100 12100 14400 16200 20100 22300 28200 28700 35500 |
.60 .90 1.19 1.59 2.06 2.69 3.41 4.20 5.13 6.22 7.44 11.0 13.1 15.3 18.8 25.4 |
*obt bearing, ball bearing, obt deep groove ball bearing.

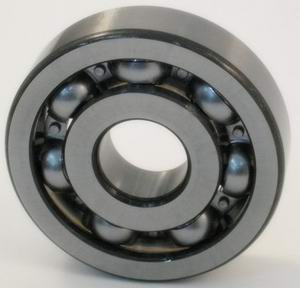

shandong obetter bearing co.,ltd deep groove ball bearing Characteristic:

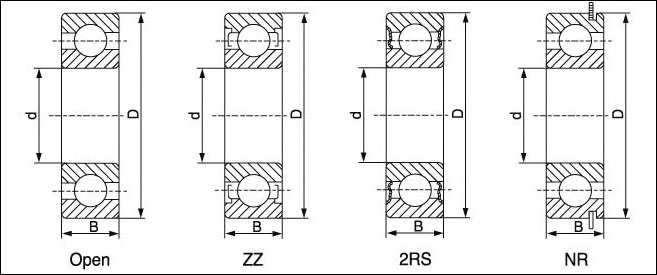

1. Seal form: open style, Z, ZZ, RS, 2RS, 2RZ
2. Bearing stop ring: N，NR
3. Class of precision: ABEC-1, ABEC-3, ABEC-5, ABEC-7
4. Vibration rank: V1, V2, V3,
5. Noise rank: Z1，Z2，Z3.
6. Internal elimination code: C0, C2, C3, C4, C5
7. Bearing material: Chrome steel (GCr15), stainless steel(AISI440C, AISI304, AISI316).
8. Keeper cage: stainless steel, PTFE, nylon
9. Bearing ferrule and ball hardness: 59 - 63HRC
we can produce non-standard bearing and machine parts as our customers request. we always follows the principles of "Good Faith, Equality, Cooperation and Win-Win" to cooperate with our customers.
For further information, please contact:
Company brand: OBT Bearing
Company Name: Shandong Obetter Bearing Co., Ltd
Tele: 86-635-8511972 /6
FAX: 86-635-8511972
WebSite: www.obtbearing.com
E-mail: obtbearing@163.com
MSN: obtbearing@msn.com
shandong obetter bearing co.,ltd deep groove ball bearing Characteristic:
1. Seal form: open style, Z, ZZ, RS, 2RS, 2RZ
2. Bearing stop ring: N，NR
3. Class of precision: ABEC-1, ABEC-3, ABEC-5, ABEC-7
4. Vibration rank: V1, V2, V3,
5. Noise rank: Z1，Z2，Z3.
6. Internal elimination code: C0, C2, C3, C4, C5
7. Bearing material: Chrome steel (GCr15), stainless steel(AISI440C, AISI304, AISI316).
8. Keeper cage: stainless steel, PTFE, nylon
9. Bearing ferrule and ball hardness: 59 - 63HRC
we can produce non-standard bearing and machine parts as our customers request. we always follows the principles of "Good Faith, Equality, Cooperation and Win-Win" to cooperate with our customers.
For further information, please contact:
Company brand: OBT Bearing
Company Name: Shandong Obetter Bearing Co., Ltd
Tele: 86-635-8511972 /6
FAX: 86-635-8511972
WebSite: www.obtbearing.com
E-mail: obtbearing@163.com
MSN: obtbearing@msn.com
Rillenkugellager Roulements a billes Rodamientos rigidos a bolas Cuscinetti a sfere Groefkogellagers Sparkullager Sporkuglelejer Urakuulalaakerit Rolamentos rigidos de esferas Sporkulelager Łożyska kulkowe zwykłe Kuličkova ložiska Guľkove ložiska Melyhornyu golyoscsapagy Радиални сачмени лагери Bilyalı rulmanlar Шарикоподшипники радиальные
